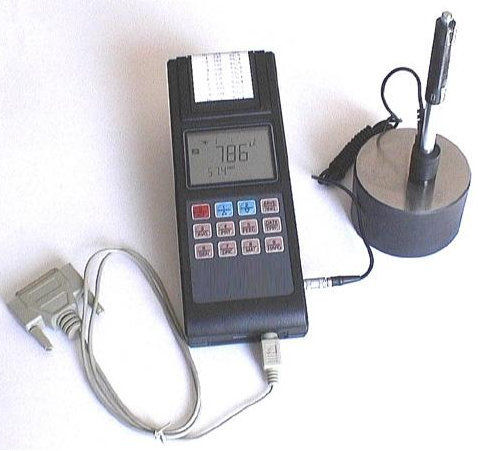

HLM-100 Plus - Fully Equipped Digital Leeb's Hardness Tester

HLM-100 plus hand-held digital hardness tester features high measuring accuracy, reliability and durability, wide measurable hardness ranges, ease of operation, and portability (light weight and small dimensions). HLM-100 plus comes with a powerful built-in microprocessor, a convenient mini-printer, and a RS-232C communication port (all are standard features). This hardness tester has been widely used in a long array of industrial sectors.



• Convenient hardness measurements at difficult-to-access locations or in confined spaces such as the inner wall surface of a die or mould;

• Determination of hardness variations over a large surface area;

• Hardness testing on heavy and large work pieces or on permanently installed parts or machines whose hardness cannot be measured by using a traditional hardness tester;

• In-line hardness measurements essentially in real time during the manufacturing process.



Highlighted Features

• Automatic conversion between different hardness scales:
  Correlations between HL values and other standard hardness Values (Brinell, Vickers, Rockwell and Shore) have been established for 9 most commonly used materials. Conversions between different scales can be readily accomplished.

• Measurements can be made from several different directions:
  This feature makes it convenient to conduct hardness measurements on a large part or within a confined space.

• The measuring accuracy may be compromised if erroneous data with an abnormally large deviation are accepted.
  The instrument provides a manual error-correcting deleting function during batch test situations.

• High batch testing efficiency:
  For a batch test that involves testing a large number of similar parts, the expected range of hardness values can be pre-set based on different requirements for improved testing efficiency. Upper or lower hardness limits can be pre-set for material sorting.

• Data printing functions:
  Data acquired may be printed out immediately or stored and printed at a later time.

• RS-232C Communication port:
  Transfer data to a PC for further data reduction and processing.

• Automatic power-off:
  When the tester remains idle for 4 minutes (no measurement made and no key-pad pressing operation) or when battery power is below a critical level, tester power will be automatically switched off.

• Auto Re-set:
  During power-up and power-down, the tester is capable of automatic re-setting.

• LCD backlit by advance Electro-Luminescence (EL) technology:
  Liquid crystal display with back-illuminating capability.

• Intelligent battery recharge management.

• Pre-Loaded Material Codes:
  Steel, Cast steel, Alloy Tool Steel, Grey Cast Iron, Nodular Cast Iron, Aluminium Alloys, Brass, Bronze, Copper alloys

• Strength testing Conversion for steel and cast steel.



Technical Specifications

• Measuring Accuracy: relative error ±0.8% (750-800LD)

• Measuring ranges
  LD 200 -900
  HB 30 -655
  HRC 20- 68
  HRB 20- 101.
  HV 80 -940
  HSD 32.5- 99.5

• Equivalent tensile strength ob 500-1923N/mm2 (for reference only)

• Working temperature: 0°C ~ 45°C

• Relative humidity < 90% RH

• Power: 4 Ni-MH batteries (1.2 Volts x 4).

• Battery re-charge time: approximately 3 hours

• Automatic power-off: when idle for 4 minutes

• RS-232C communication port: transfers data to a PC for further processing (e.g., for SPC), display and printing.

• Mini-printer: may print out data immediately after measurement or at a later time.

• Print paper:30mm x 44mm

• Dimensions: 224mm x 84mm x 38mm

• Tester weight: 0.7kg (excluding the impact probe)



Standard Delivery

• Main Tester Unit with Built-In Mini-Printer

• Impact Device (Type D)

• Standard Test Block (D Type)

• Small Supporting Ring (D6a)

• RS-232C Communication Cable and Software Disk (Floppy)

• 8 Rolls Printer Paper

• AC Adapter (110 - 220V)

• Operation Manual

• Cleaning Brush

• Carrying Case
